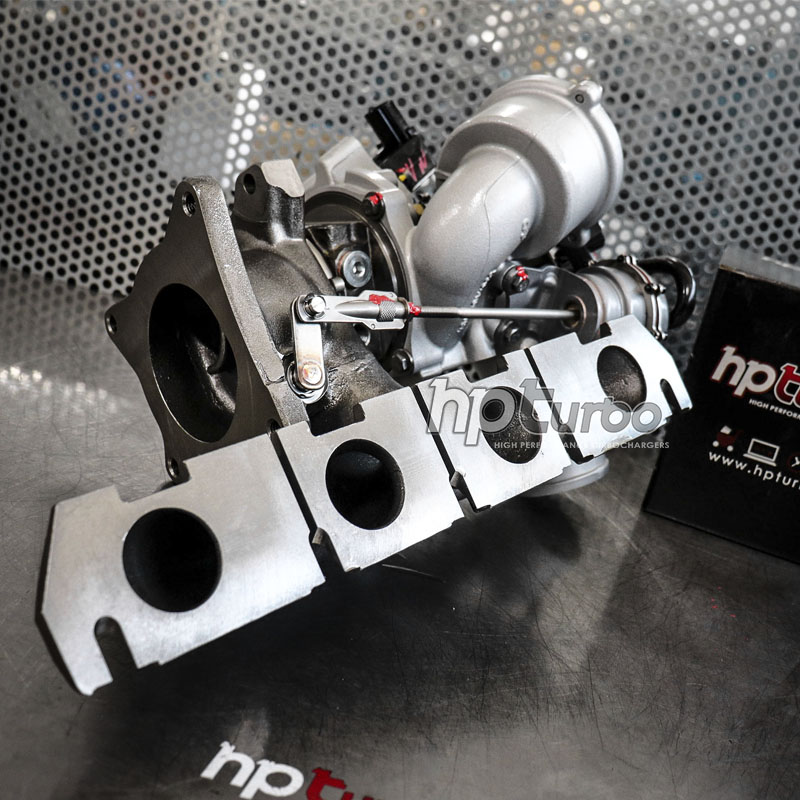

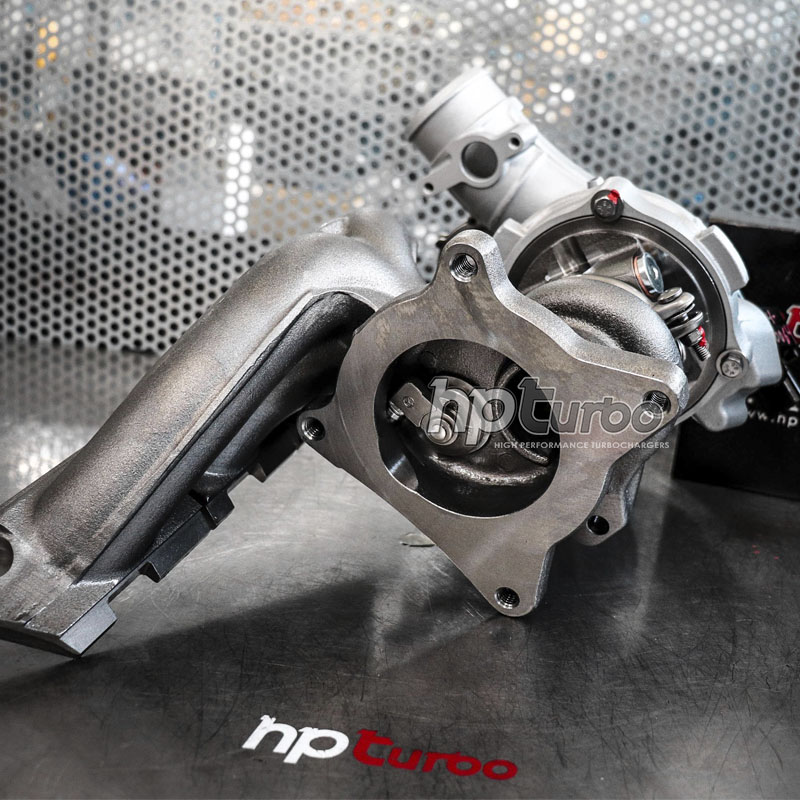

2.0 TFSI Turbo Hybrid (20V / 16V) 170 - 220HP – High-Performance Upgrade
K03 Stage 1 gains up to +60HP
K03 Stage 2 gains up to +100HP
K03 Stage 3 gains up to +150HP
Technical Specifications:
Original Borgwarner K03-0106 / 0087 / 0086 / 0105 / 0290 base unit – 100% Plug & Play Installation
Developed for the 2.0 TFSI (20V / 16V) 170 - 220HP
Modifications and Improvements:
» Plug & Play installation;
» MFS compressor plus spool;
» High-Flow Turbine for greater efficiency;
» CNC machining for pinpoint precision
Developed by HPTURBO for maximum performance with OEM reliability.
*PRE-SHIPPING OF YOUR TURBO IS REQUIRED
*NOTICE: Stages Turbo is not suitable for use in stock cars. The values quoted as "+ xx hp" are a reference to the pressure and flow capacity of the turbo setup. To achieve these outputs, the car may also require an upgrade to the injection, intercooler, exhaust system, and methanol. Any setup requires a corresponding electronic adjustment.
The above values include VAT at the current legal rate.
General data
Turbo ref.
53039700106, 53039700105, 53039700086, 5303970087, 53039700290
Models
A3, A3 CABRIOLET, A3 QUATTRO, A3 SPORTBACK, A3 SPORTBACK QUATTRO, A4, TT, TT ROADSTER, A4 Avant, A4 Avant Quattro, A4 Cabriolet, A4 Quattro, A6, A6 Avant, Exeo, Exeo ST, ALTEA, ALTEA XL, LEON, TOLEDO, OCTAVIA, OCTAVIA COMBI, EOS, GOLF V, JETTA, JETTA III
Engine ref.
BPJ, BGB, BWE, BWT, BPG, BUL, BWA, CCZA, BPY, CCTA, AXX, CAWB, CBFA, CCZC, CESA,
Other refs.
06D145701B / 06D145701BX / 06D145701C / 06D145701CX / 06D145701D / 06D145701DX / 06D145701E / 06D145701EX / 06D145701F / 06D145701FX / 06D145701G / 06D145701GX / 06D145701H / 06D145701HX / 06D145701J / 06D145701JX / 1103750 / 127700 / 127700RED / 127700RE
Preparation power
K03 Stage 1 ganhos até +60HP, K03 Stage 2 ganhos até +100HP, K03 Stage 3 ganhos até +150HP
